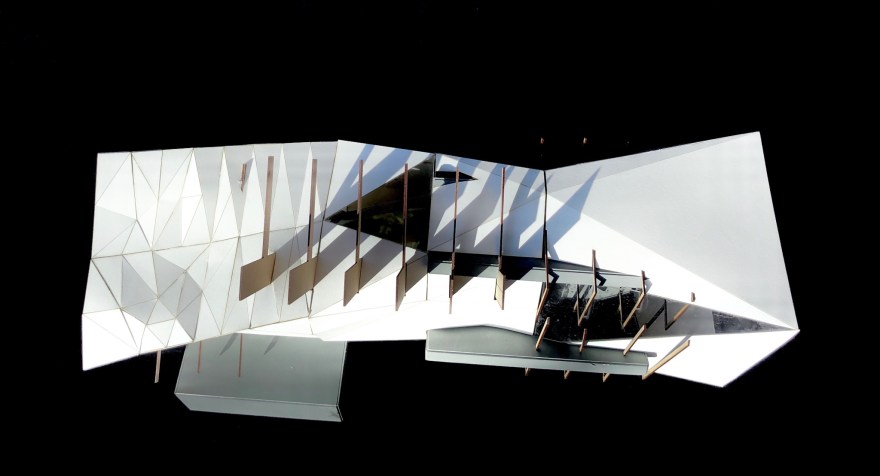

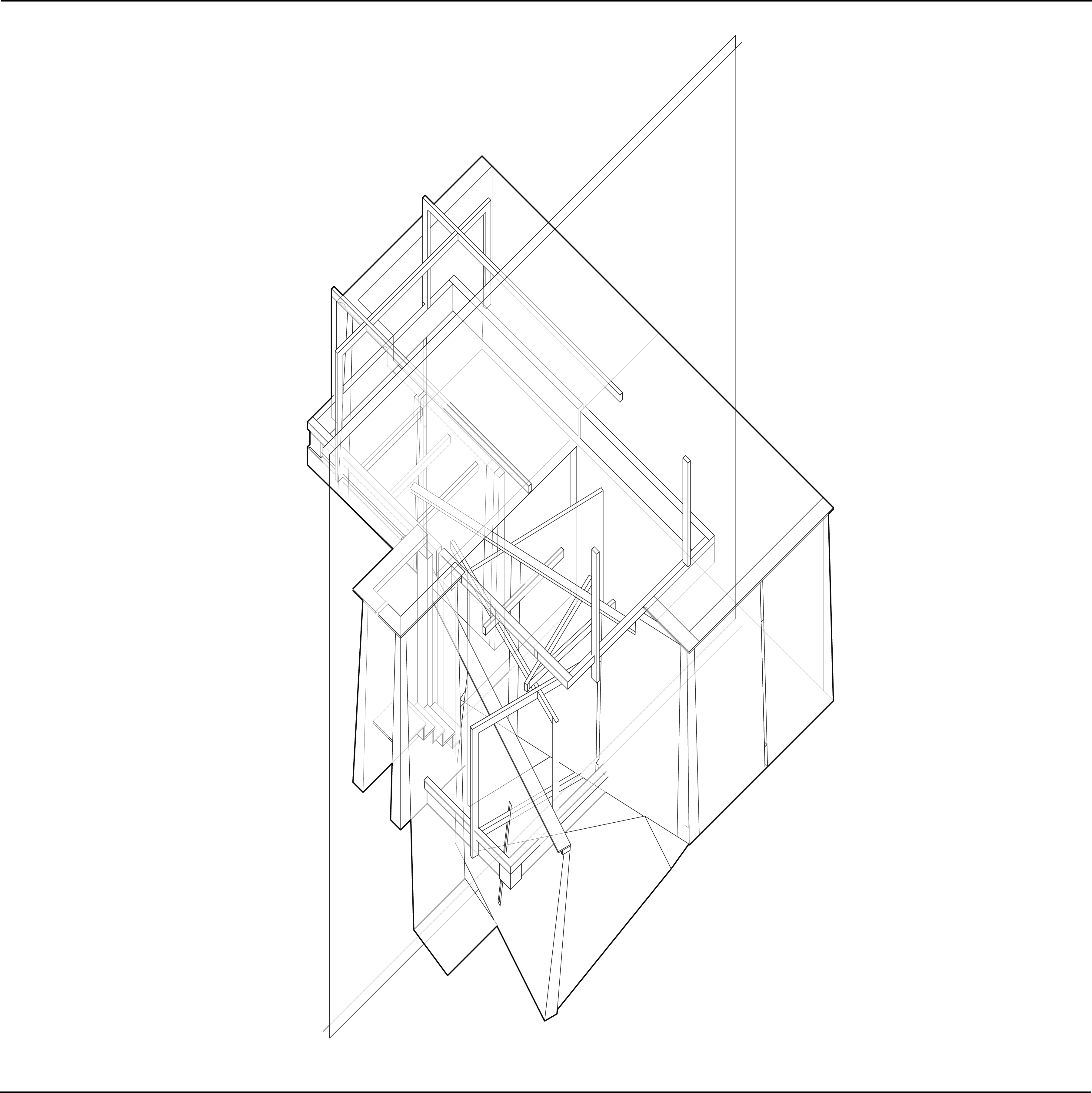

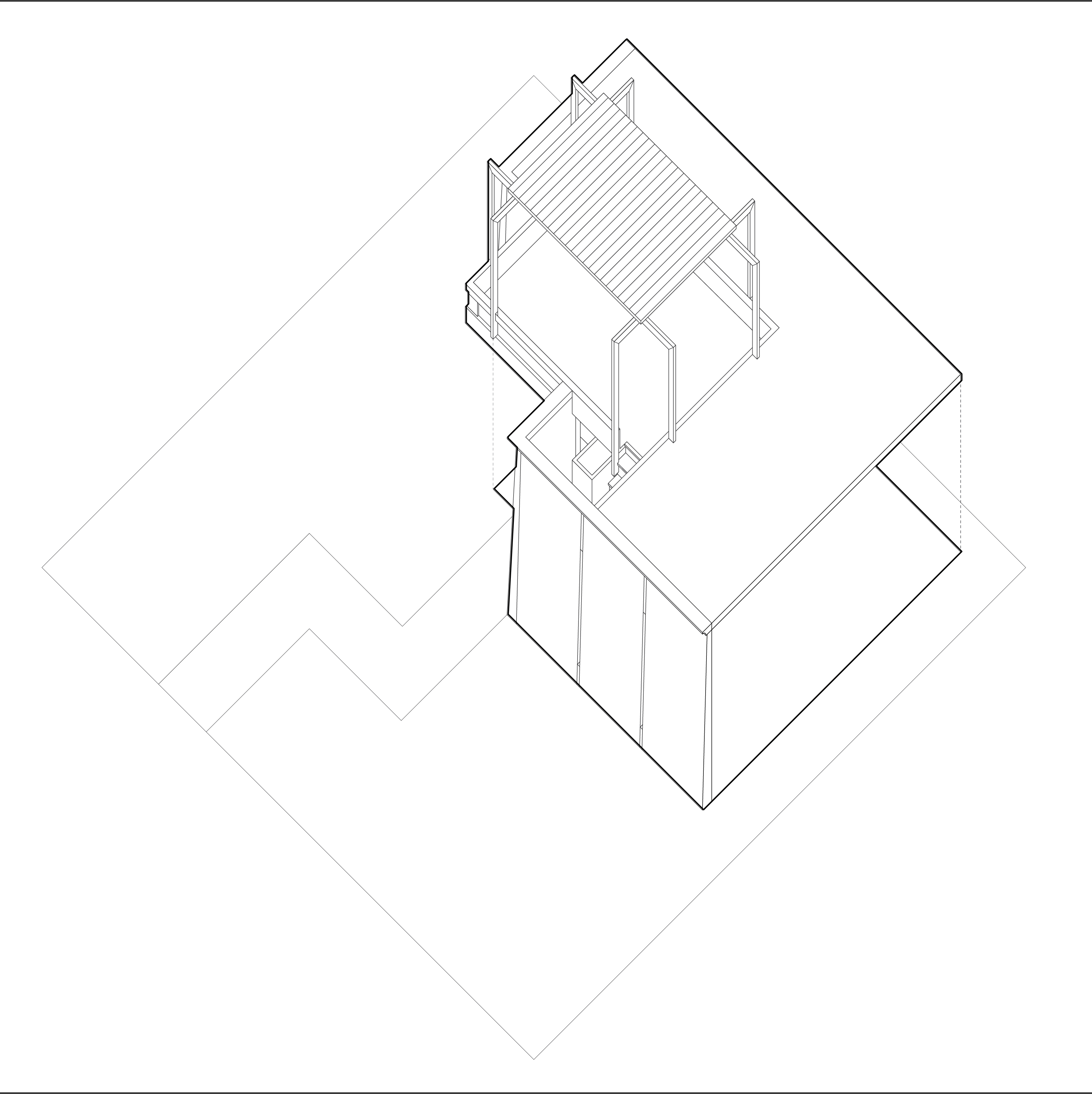

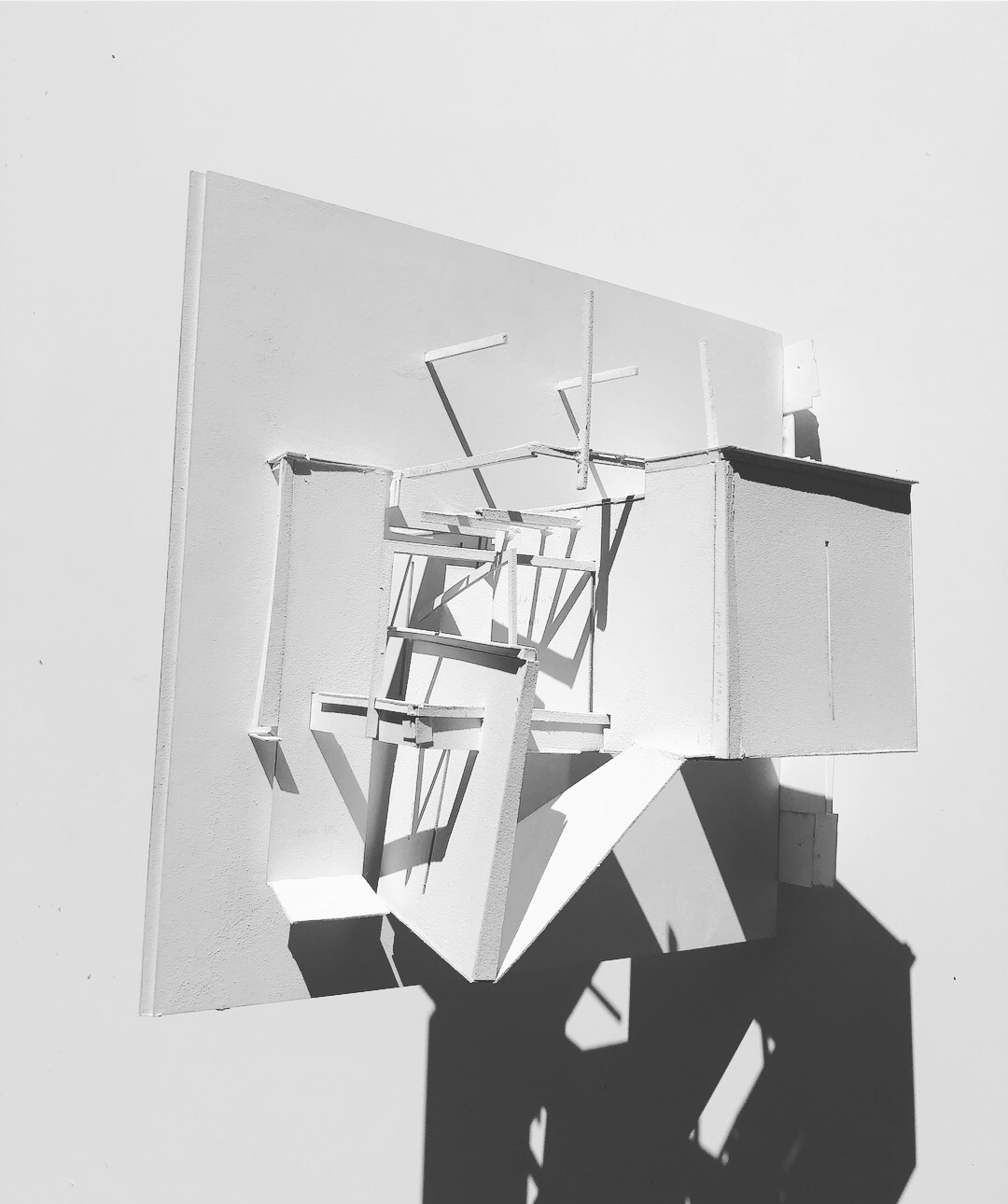

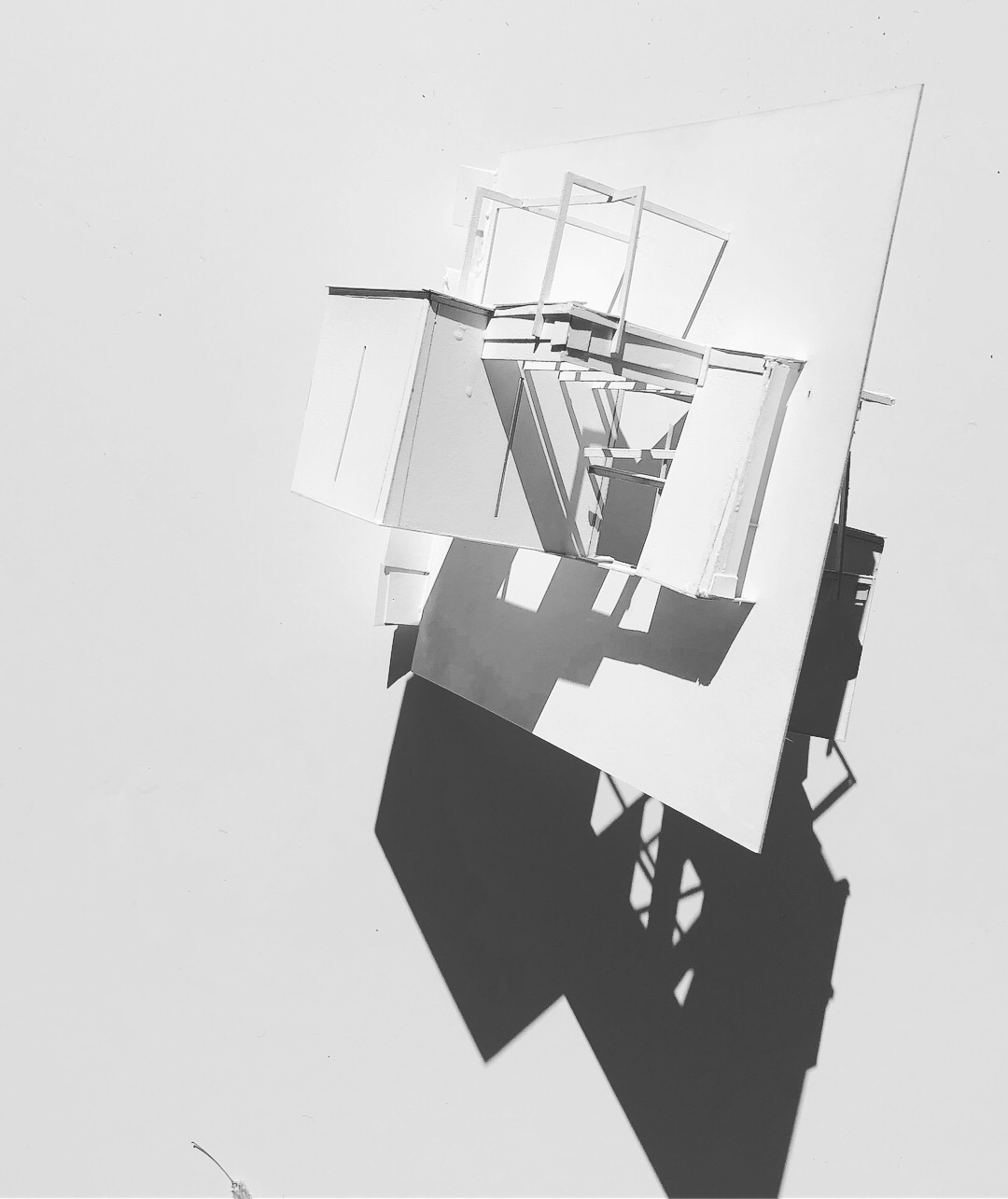

This project used the Schindler House in Los Angeles as a precedent. We were tasked with choosing a specific portion of the house and use only images to create a digital 3D model. From this model, we then produced axonometric drawings. Then, using a dividing datum, we mirrored our original model, creating a distorted section that connected to the original portion through an opening. Finally, we were tasked with producing axonometric line drawings for this composition and a physical 3D model using a laser printer (individual project).
UCLA AUD Jumpstart Studio, under Visiting Professor Karel Klein
